Over-Truss Steel Bridge

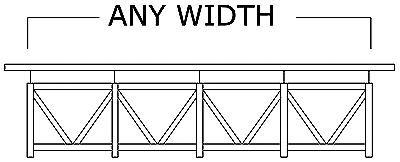

over truss bridge span diagram over truss bridge width diagram over truss bridge multi-span diagram
  • 20m - 100m span
  • Very similar to simple beam bridges, but the beams are replaced with trusses, making them much deeper and lighter
  • Easily widened with additional trusses
  • More complex to build
  • Depth is typically 12% of the span, so the roadway has to be higher if the bridge is to have sufficient clearance over water, railways etc.

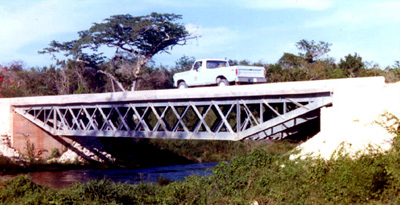

photo of steel over truss bridge

Read information on construction of a Through Truss Bridge.
